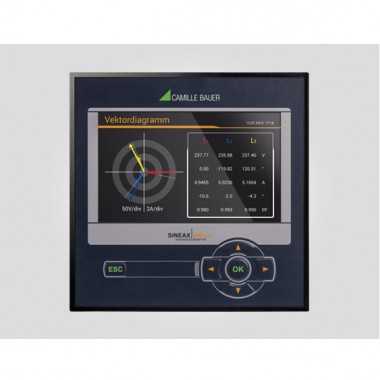

德国GMC 电量变送器 SINEAX AM1000

SINEAX AM1000 电气监控单元显示精美、操作简便，功能强大且支持多种可选组件，无需硬件调整即可广泛应用于从单相到三相四线不平衡等各种配电环境。

• Direct measurement up to 690V, CAT III
• Class 0.2 (U/I), class 0.5 (P/Q/S), class 1.0 (meters)
• Condition monitoring
• Energy consumption analysis (Meters, load curves, trend analysis)
• Harmonic analysis acc. IEC 61000-4-7
• System imbalance monitoring
• Limit monitoring with alarming
• Universal process I/O
• Graphical measurement displays
• High resolution color TFT displayOptions

Ethernet interface
• Device parameterization via WEB browser
• Firmware update
• Measurement display
• Measurement acquisition via control system (Modbus/TCP)
• Service and maintenance

Modbus/RTU interface
For measurement acquisition via control system.

Process I/Os
In addition to the standard I/Os (1 digital output, 1 digital input/output) an I/O extension can be implemented in the device. You may select from:

• 2 relay outputs
• 2 analog outputs ±20mA
• 4 analog outputs ±20mA

Data logger
Allows to record periodically or event-triggered measurement data: Load curves, measurement variations, meter readings, alarm states, disturbances.

Accessories
• Documentation CD
• Curren Transformers
